Quetta Detectors
OKM EXP 6000 PRO+
OKMProfessional

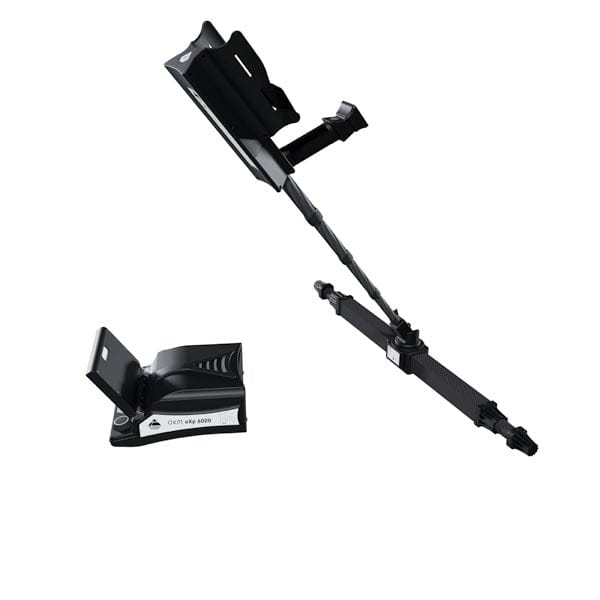

OKM EXP 6000 PRO+

3D Scanner performance for archaeological surveys.

3D Scanner25m Depth

PKR 9,860,000

Order on WhatsApp
Manufacturer warranty as listed in specifications below

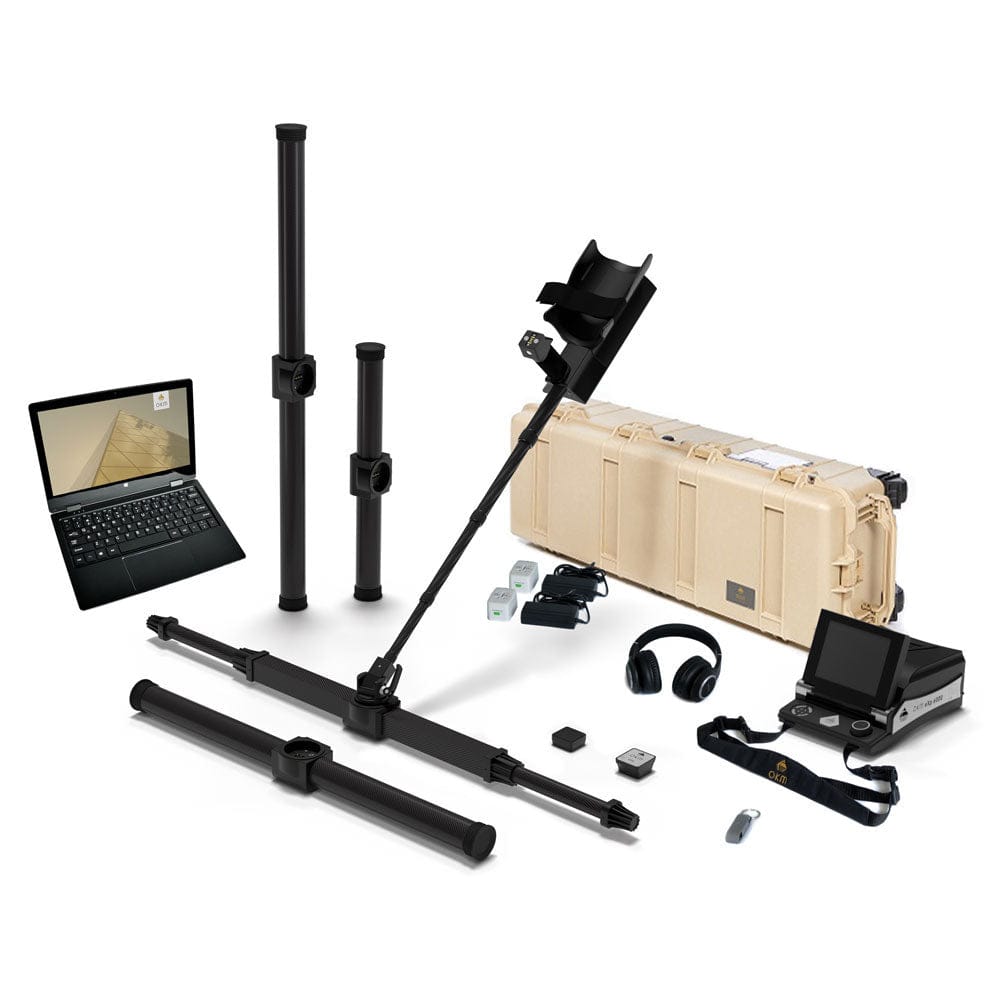

What’s in the box

  • 1x Control Unit
  • 1x Wireless Telescopic Probe
  • 1x Wireless Super Sensor
  • 1x Wireless Live-Stream Sensor
  • 1x Wireless Tunnel Sensor
  • 1x Telescopic Rod with GPS Receiver Cap
  • 1x Pre-configured Notebook
  • 1x OKM Visualizer 3D Studio Professional Edition (software)
  • 1x Bluetooth Headphones with charging cable
  • 1x Charger with cable
  • 1x Travel Adapter Set
  • 1x Waterproof Protector Case
  • 1x Quick Start Guide

Overview

The OKM EXP 6000 PRO+ is OKM's flagship 3D ground scanner, built around wireless telescopic probe for archaeological surveys, one of the more capable options we stock across the rocky, mineralized ground common around Quetta.

Battery life runs to approx. 4 hours (control unit), approx. 5 hours (telescopic rod) at full charge, 25°C, long enough for a full day out without carrying a spare pack for most users.

It's a natural fit for archaeological surveys, cavity & tunnel detection, and natural gold prospecting — the kind of spread that covers most of what a flagship buyer is actually looking for in a 3D ground scanner.

Key Features

  • Wireless Telescopic Probe

    extends to 124 cm and connects over WiFi, removing the need for trailing sensor cables

  • Six Operation Modes

    covers 3D Ground Scan, Tunnel Scan, Magnetometer, Mineral Scan, Pinpointer, and Live Scan in one device

  • Carbon-Fiber Probe Set

    includes the Telescopic Probe, Super Sensor, Live-Stream Sensor, and Tunnel Sensor, each rigid yet lightweight for extended field use

  • 6.5-inch Touchscreen Control Unit

    displays live scan data at 1024 x 768 resolution and runs a multilingual interface translated into 12+ languages

  • Visualizer 3D Studio Professional Edition

    reconstructs saved scans into rotatable, color-coded 3D models on the included notebook for detailed post-scan analysis

  • Removable GPS Receiver

    geo-tags scan locations directly from the telescopic rod handle for accurate return-to-site mapping

  • Video Glasses Compatibility

    streams live scan feed to compatible smart eyewear for hands-free field operation

Ideal For

Archaeological Surveys

Where this 3D ground scanner holds up well: archaeological surveys, especially in ground conditions typical of Balochistan.

Cavity & Tunnel Detection

When it comes to cavity & tunnel detection, this 3D ground scanner plays to its strength — OKM built it with exactly this kind of use in mind.

Natural Gold Prospecting

EXP 6000 PRO+ is a solid choice for natural gold prospecting, particularly with wireless telescopic probe.

Professional Treasure Hunting

For professional treasure hunting, the depth on this 3D ground scanner does most of the work.

Technical Specifications

Depth3D Scanner
Made InGermany
Warranty2 Years
Operating PrincipleSCMI-15-D Dual/Hexa Geophysical Phase Reader with 3D ground scanning
Detection RangeUp to 30 m wireless operating distance (line of sight) between probe and control unit
3D Imaging SoftwareOKM Visualizer 3D Studio Professional Edition (included on pre-configured notebook)
Power SourceRechargeable battery, 11.8-19 VDC, 50W max (control unit)
WeightControl unit ~2.34 kg; telescopic rod ~1.76 kg; probes 0.76-1.04 kg each
ManufacturerOKM
Control Unit Display6.5" touchscreen, 1024 x 768 pixels
Operating Modes3D Ground Scan, Tunnel Scan, Magnetometer, Mineral Scan, Pinpointer, Live Scan
Operating TimeApprox. 4 hours (control unit), approx. 5 hours (telescopic rod) at full charge, 25°C
Operating Temperature-10°C to 50°C
Processor / MemoryQuadCore AMD @ 2GHz, 4GB RAM, 8GB microSD storage
ConnectivityWiFi 802.11n wireless probe connection
Probe MaterialCarbon fiber, magnetic quick-mount connectors
